Microbiology

Gram smears analysis automation

Clinical Application Module
Vision Gram

Vision Gram

Automatic analysis of Gram smears

Automatic scanning and creation of digital slide

Automatic morphology assessment, count and pre-classification of gram-positive and gram-negative bacteria:

— Lactobacillus morphotypes

— Gram-negative and gram-positive rods

— Gram-negative and gram-positive cocci, located extra- and intracellularly, paired, chains, clusters

— Gardnerella morphotypes

— Anaerobic bacterial morphotypes, including: Peptostreptococcus, Bacteroides, Fusobacteriales, Prevotella, Mobiluncus spp.


Additional Module

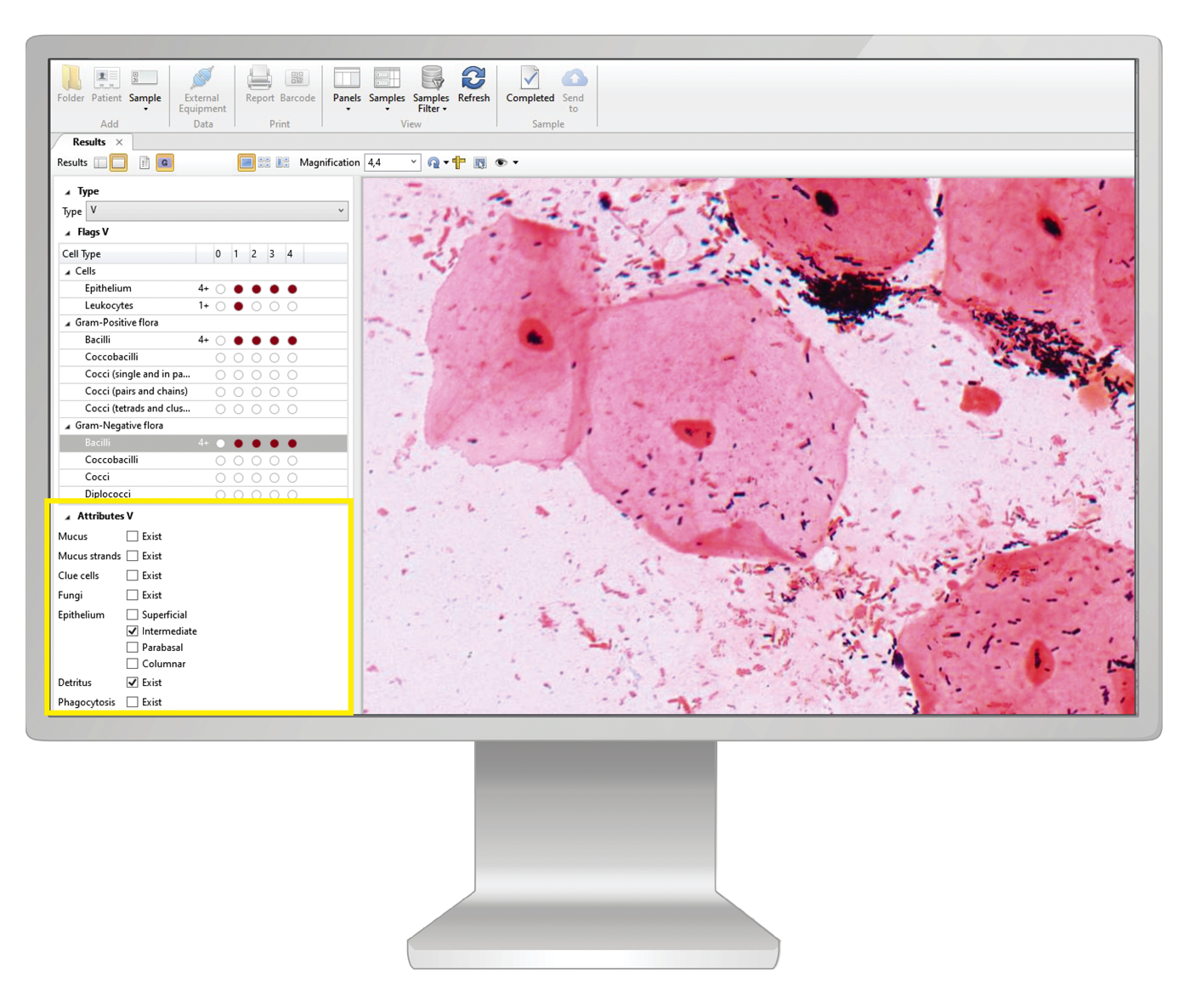

Vision Extended Gram

Vision Extended Gram

Automatic identification:

— Epithelial cells (superficial, intermediate, parabasal, cylindrical epithelial)

— Leukocytes

— Clue cells

— Mucus and cell debris

— Trichomonas vaginalis

— Fungi.


Scanning DS 2.5x, smear and location area detector

Working with one location area
Operation mode: Gram

ROI G

Digital slide, Gram smear with 2.5x magnification.
Automatic detection of Regions of Interest (ROI), Gram smear

ROI G

Automatic scanning and analysis of Gram location


Automatic detection of three locations

Operation mode with three locations:
Cervical, Urethral, Vaginal

ROI G

Digital slide, Gram smear with 2.5x magnification.
Automatic selection of locations and Regions of Interest (ROI) for locations: Cervical, Vaginal, Urethral


Automatic scanning and analysis of Cervical Location

Automatic scanning and analysis of Urethral Location

Automatic scanning and analysis of Vaginal Location

Artificial intelligence

Artificial intelligence (AI) cumulates algorithms and technologies that allow computers to learn and solve intellectual tasks provided by humans. AI speeds up processing and interpretation of data, and allows to efficiently perform the most comprehensive tasks, including medical image analysis.

Administrative Modules

Vision Manager

Analysis procedure automation, data processing rules.

Сonsulting and Education Module
Vision Suite

Vision Suite

Cloud/server for telemedicine and remote consultations with colleagues.

Clinical applications

The latest developments of artificial intelligence provide a solution for the tasks connected with automation in digital microscopy. Our technologies speed up the diagnostic process, reduce analysis time and lower subjectivity of the results received. They improve the efficiency of laboratory routine operation, bringing microscopy analyses in line with state-of-the-art standards.

Specifications

Vision Assist
Vision Assist
Cell Imaging Analyzer

Vision Pro
Vision Pro
Cell Imaging Analyzer

Vision Ultimate
Vision Ultimate
Cell Imaging Analyzer

Application module
Vision Gram

Application module
Vision Gram

Application module
Vision Gram

Additional modules
Vision Extended Gram

Additional modules
Vision Extended Gram

Additional modules
Vision Extended Gram

Digital slide 100x

Digital slide 60x/100x

Digital slide 63x

Operation mode: Gram (1 location)

Operation mode: Gram (1 location)

Operation mode: Gram (1 location)

Operation mode CUV (3 locations)

DS 2,5x, smear detector

Working modes:
queue (only 4 slides version)

Working modes:
queue, random access

Working modes:
queue, continuous and random access, STAT testing, 24/7

Automatic scanning

Automatic scanning

Automatic scanning

1 or 4 slides

8 slides

Up to 200 slides

Manual slide handling

2 cassettes with slides

Automatic slide handling

Microscope for scanning

Microscope for scanning

Microscope for scanning

Personal computer

Personal computer

Personal computer

Monitor

Monitor

Monitor

Touch-screen monitor for control

Built-in barcode reader (optional)

Built-in barcode reader

Automatic oil dispenser (optional)

Automatic oil dispenser

Optical system:
10x, 50x Oil, 100x Oil

Optical system:
10x, 60x Oil, 100x Oil

Optical system:
2.5x, 10x, 63x Oil

Bright field

Bright field

Bright field

Köhler illumination, LED

Köhler illumination, LED

Köhler illumination, LED

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet

Art. N.: 71150.05 (1 slide)
Art. N.: 71450.05 (4 slides)

Art. N.: 72852.05 (8 slides)

Art. N.: 73031.05 (200 slides)

Please check the intended use and the registration in your local regulation. Depending on the regulations of the respective region, some products may be used for research purpose only. Pre-classification has to be validated by the specialist reviewing the galleries of cells. We reserve the right to change specification without notice.
