Digital Microscopy for Diagnostics of Sexually Transmitted Diseases

Application Module

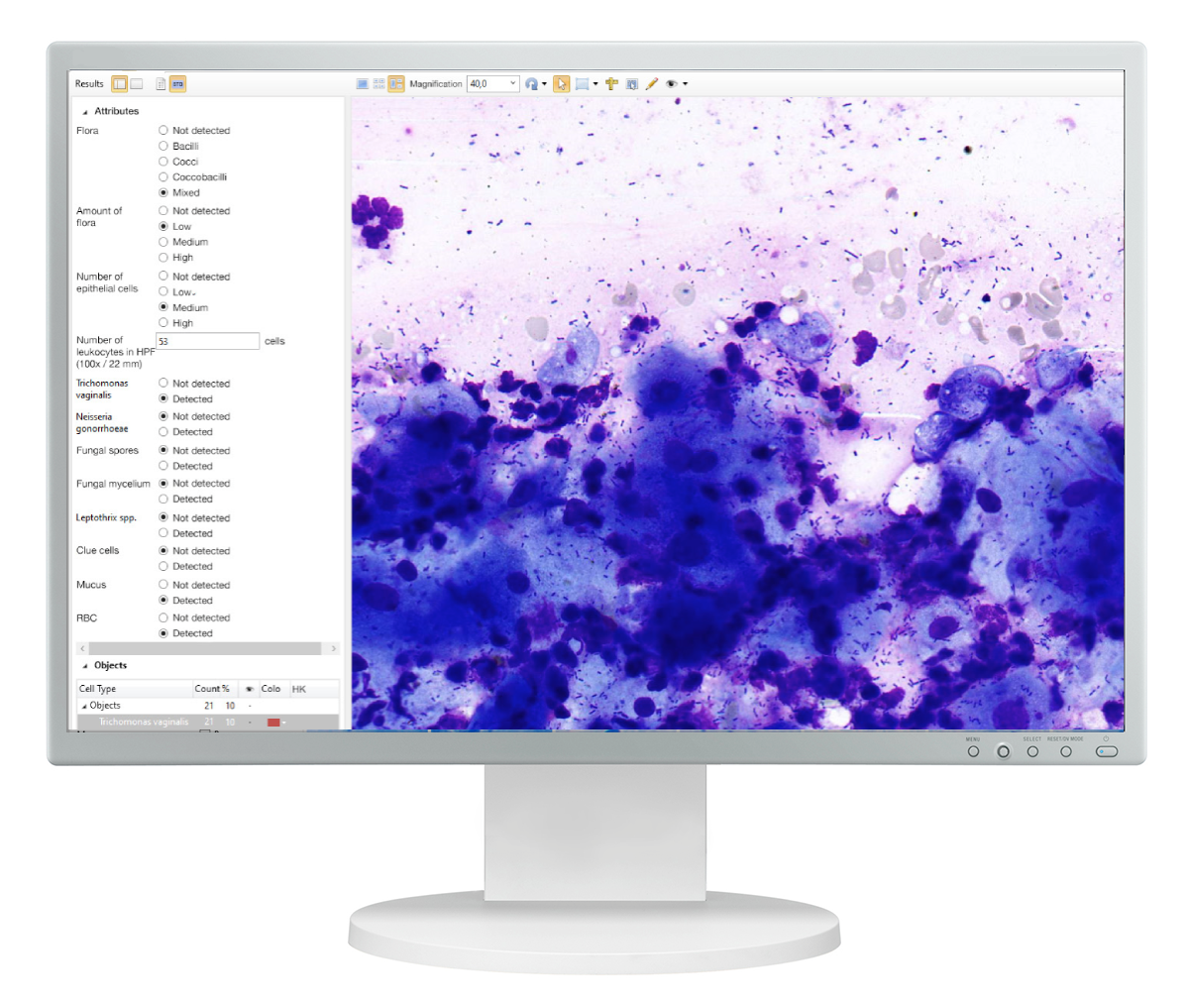

Vision Cyto STD (Sexually Transmitted Diseases)

Vision Cyto STD

Automatic scanning of slides.

Digital slide preparation.

Testing for sexually transmitted infections.

Gallery presentation of:

— Trichomonas vaginalis

— Neisseria gonorrhoeae

— Candida spp.

— Clue cells

Trichomonas vaginalis Neisseria gonorrhoeae

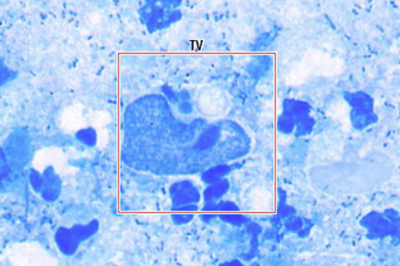

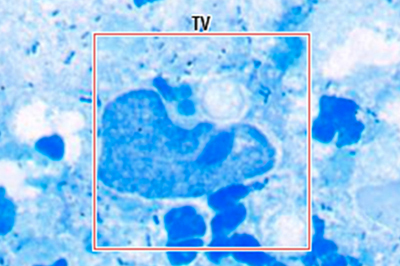

Trichomonas vaginalis

Candida Spp.

Candida Spp. Clue cells

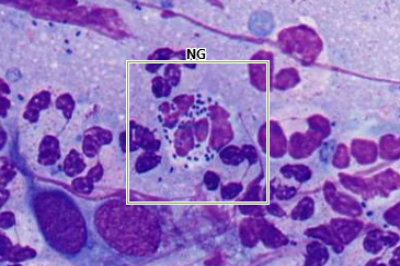

Neisseria gonorrhoeae

Clue cells

Artificial intelligence

Artificial intelligence (AI) cumulates algorithms and technologies that allow computers to learn and solve intellectual tasks provided by humans. AI speeds up processing and interpretation of data, and allows to efficiently perform the most comprehensive tasks, including medical image analysis.

Administrative Modules

Vision Manager

Analysis procedure automation, data processing rules.

Vision Remote

Remote workstation.

Сonsulting and Education Module
Vision Suite

Vision Suite

Cloud/server for telemedicine and remote consultations with colleagues.

Clinical applications

The latest developments of artificial intelligence provide a solution for the tasks connected with automation in digital microscopy. Our technologies speed up the diagnostic process, reduce analysis time and lower subjectivity of the results received. They improve the efficiency of laboratory routine operation, bringing microscopy analyses in line with state-of-the-art standards.

Specifications

Vision Assist Vision Pro Vision Ultimate

Vision Assist
Cell Imaging Analyzer

Vision Pro
Cell Imaging Analyzer

Vision Ultimate
Cell Imaging Analyzer

Application module
Vision Cyto STD

Application module
Vision Cyto STD

Application module
Vision Cyto STD

Working modes:
queue (only 4 slides version)

Working modes:
queue, random access

Working modes:
queue, continuous and random access, STAT testing, 24/7

Automatic scanning

Automatic scanning

Automatic scanning

1 or 4 slides

4 or 8 slides

Up to 200 slides

Manual slide handling

2 cassettes with slides

Automatic slide handling

Microscope for scanning

Microscope for scanning

Microscope for scanning

Personal computer

Personal computer

Personal computer

Monitor

Monitor

Monitor

Touch-screen monitor for control

Built-in barcode reader (optional)

Built-in barcode reader

Automatic oil dispenser (optional)

Automatic oil dispenser

Optical system:
10x, 50x Oil, 100x Oil

Optical system:
10x, 60x Oil, 100x Oil

Optical system:
10x, 50x Oil, 100x Oil

Bright field

Bright field

Bright field

Köhler illumination, LED

Köhler illumination, LED

Köhler illumination, LED

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet

Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet


Art. N.: 71150.00.019 (1 slides)
Art. N.: 71450.00.019 (4 slides)

Art. N.: 72452.00.019 (4 slides)
Art. N.: 72852.00.019 (8 slides)

Art. N.: 73011.00.019 (200 slides)

Product only for research.
